    Go-Gold Electric Curtains Motor 2500RPM 1W 0.04A 1V Gear Motor

    Ask Lasest Price
    Brand Name : Go-Gold
    Model Number : KG-3329GM12
    Certification : ISO
    Price : Negotiation
    Payment Terms : L/C, T/T, Paypal
    Supply Ability : 10000pcs-30days
    Delivery Time : 7days for samples
    • Product Details
    • Company Profile

    Go-Gold Electric Curtains Motor 2500RPM 1W 0.04A 1V Gear Motor

    Electric Curtains Motor 2500RPM 1W 0.04A 1V Gear Motor Go-Gold

    Performance specification


    Rated Voltage12VRated Current0.04A
    Rated Speed3400RPMNo-load Speed2500RPM

    Lead Time


    Quantity(pcs)1-10001001-10000>10000
    Lead Time(days)1530To be negotiation

    Essential Detials


    Warranty: 3Years


    Place of Origin: Guangdong, China


    Brand Name: Go-Gold


    Model Number: KG-3329GM12


    Usage: Electric Curtains


    Type: Small Gear Motor


    Rated Torque: 40gf.cm


    No-load Speed: 2500RPM


    No-load Current: 0.04A


    Product Name: Electric Curtains Motor Gear Motor


    Certification: ISO


    Rated Voltage: 12V


    Keywords: Electric Cantains Motor


    Noise: Low


    Motor Application

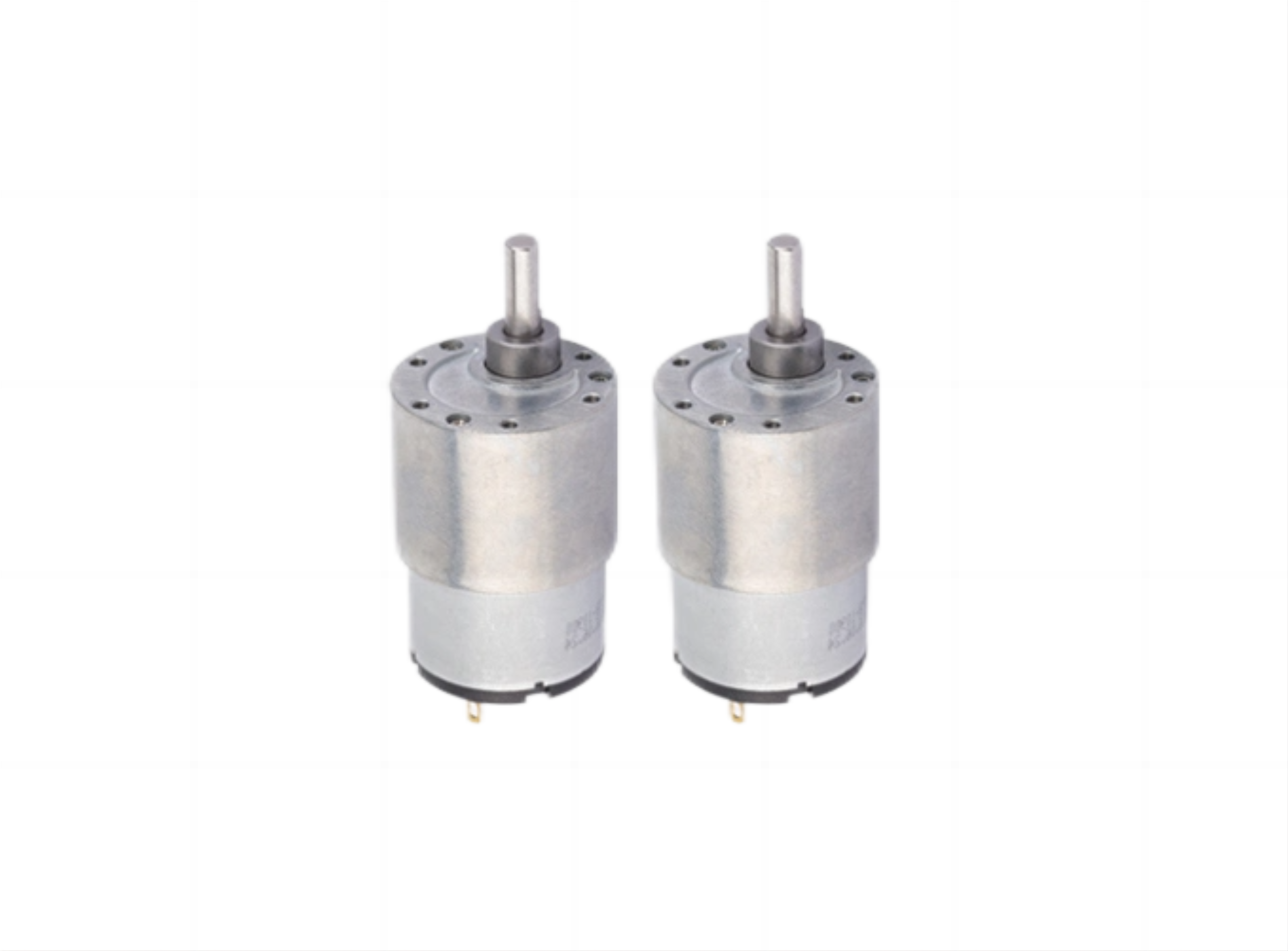

    Motor Picture


    The Gear Motor Mainly has the Following Three Functions


    1. Deceleration: The speed of the motor reaches the required speed through the deceleration gearbox, which is often referred to as the output speed;


    2. Increase torque: Under the same power, the slower the output speed, the greater the torque, and vice versa.


    3. Change the transmission direction: The Gear Motor can transmit torque 90 degrees vertically.


    The Main Functions of the Gear Motor Include the Following Two Points


    (1) Decrease the speed and increase the output torque at the same time. The torque output ratio is based on the motor output multiplied by the reduction ratio, but be careful not to exceed the rated torque of the reducer;


    (2) Deceleration also reduces the inertia of the load, and the reduction in inertia is the square of the reduction ratio.


    The Gear Motor is actually a power transmission mechanism that does not generate power by itself. Its function is to use different gear sizes and speed converters to reduce the number of revolutions of the motor to the desired number of revolutions; and obtain greater torque. of institutions. Of course, some people will have doubts. Isn't it enough to just ignore the reducer and adjust the speed of the motor? In fact, it is not the case. The reducer is a mechanism that obtains larger torque when changing the speed. The motor is directly connected to the equipment. When the equipment is running, the load on the motor is very large, which will cause great damage to the motor. However, it is different after a reducer. For example, a reducer with a reduction ratio of 100, when the machine is running The load on the motor is only one percent, thus reducing the loss of the motor. In addition, if the reducer is damaged, you only need to replace the gear, and the cost is much lower than that of the motor. If the motor is damaged, it will undoubtedly lead to the expansion of the accident.
