Medical Equipment Motor 12V 4200-8820RPM 0.04-0.22A For Urine Analyzer

Essential Details

Model Number: KG-1626DC12S

Rated Voltage: 12V

Rated Speed: 4200-8820RPM

Continuous Current: 0.04-0.22A

Place of Origin: Guangdong, China

Type: Brush DC Motor

Application: Medical Equipment

Rated Torque: 2(mNm)

Application: Urine Analyzer

Usage: Medical Equipment

Performance Specifications

Lead Time

Drawings

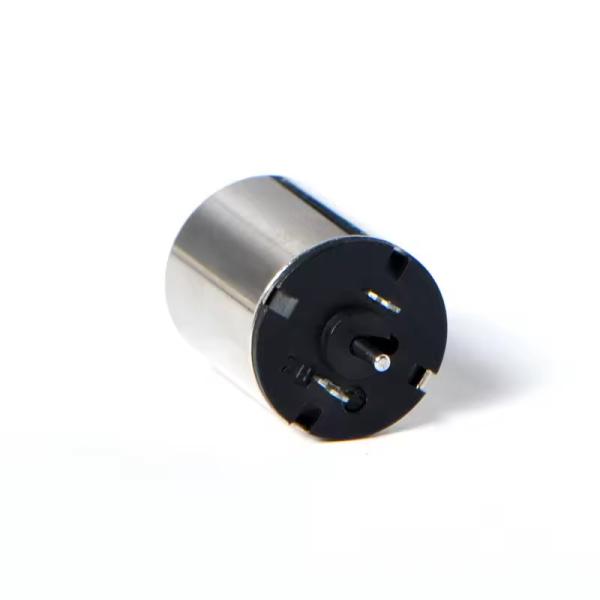

Motor Picture

Application

Components of a DC Motor

1. Stator

The stator consists of the central and cylindrical two-pole permanent magnet, the core that supports the bearings, and the steel tube that closes the magnetic circuit. High-quality rare earth magnets ensure outstanding performance in a small envelope. Sintered bearings and ball bearings are available depending on your application loads and requirements.

2. Brush holder endcap

The brush holder endcap is made of a plastic material. Depending on the intended use of the motor, the brush could be of two different types; carbon or multi-wire. Carbon types use copper graphite or silver graphite and perfectly suit incremental motion applications where high continuous and peak torque are required. Multi-wire type uses precious metal and will guarantee low starting voltage and improved efficiency, a perfect match for portable battery-powered applications. Portescap's engineer can design endcaps that reduce electromagnetic noise to meet EMC requirements.

3. Rotor

The rotor is the heart of Portescap's DC motor. The coil is directly and continuously wound onto a cylindrical support that is later removed, eliminating excessive air gaps and inactive coil heads that bring no contribution to the torque creation. The self-supporting coil does not require an iron structure and therefore offers low moment of inertia and no cogging (the rotor will stop in any position). Unlike other conventional DC coil technologies, due to the absence of iron there are no hysteresis, eddy current losses or magnetic saturation. The motor has a perfectly linear speed-torque behavior and the running speed depends only on supply voltage and load torque. Portescap, through its proprietary know-how, has developed multiple automated winding machines for different frame sizes and continues to innovate on the winding method to increase power output.

The brushes/collectors combination is optimized to withstand a long operational lifetime at up to 12,000 rpm and provide high reliability. Portescap DC products can deliver a torque range from 0.6 mNm up to 150 mNm continuously and from 2.5 mNm up to 600 mNm in intermittent operation.

The Main Features of DC Motors .

• Ability to operate at high speeds

• High starting torque

• Motor speed and torque can be controlled by voltage
