Warranty: 1-3 Years

Place of Origin: Guangdong, China

Brand Name: Go-Gold

Model Number: KG-380DC36

Usage: Home Appliance, Hair Dryer

Type: DC Motor

Commutation: DC

Protect Feature: Permanent Magnet

Feature: High Speed

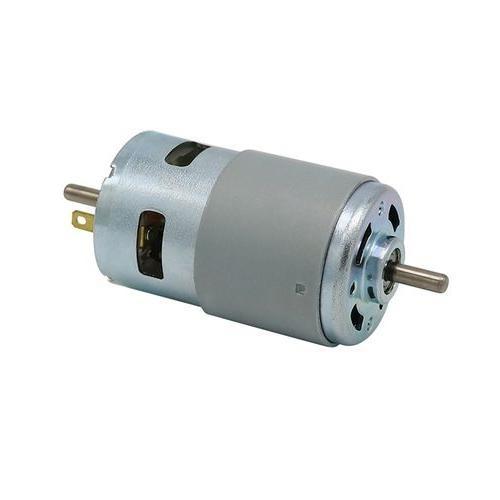

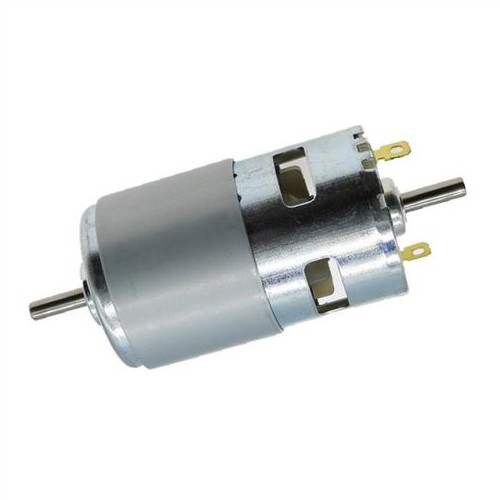

Product Name: Hair Dryer Motor DC Motor

Motor type: DC Motor

Certification: CCC Ce RoHS

Rated Voltage: 36V/Custom Made

Keywords: Home Appliance, Hair Dryer

Noise: Low

Material: Cooper Wire

Performance Specification

Introduction

Hair dryer DC motor, provides optimal air flow, long life, high efficiency, lightweight and customizable. Shenzhen Gaojin Motor Company has a mature hair dryer motor customization platform and can provide large sample data for reference.

Working Principle of DC Hair Dryer Motor

The principle of DC hair dryer fan motor mainly includes the following parts:

Motor-driven fan blade rotation: The main motor of a hair dryer is a DC motor that converts electrical energy into mechanical energy. When the motor starts, the magnetic field inside the motor rotor interacts with the magnetic field in the motor stator to form torque. This torque drives the rotor to rotate, which drives the blades to rotate.

Hot end generates heat: The hot end of a hair dryer refers to the heat generated by the electrical components. Most modern hair dryers use electric tungsten wire, also known as heating wire. A heating wire is an electronic device made of tungsten that is specifically designed to generate heat. When electric current passes through the electric heating wire, electrons continuously collide in the wire, converting their energy into heat, forming a high-temperature area. These high-temperature areas will directly output heat energy to heat the air flow blown by the hair dryer.

Airflow generation: The rotation of the blades drives the flow of surrounding air, causing the airflow to accelerate as the blades rotate, ultimately producing a powerful airflow.

Cold air and hot air switching control: Hair dryers usually have an independent temperature control system for switching between cold air and cold air. When the user selects the cold air function, the electric fan will rotate instead of using an electric heater to blow out cold air. When the user selects the hot air function, the electric heater will heat the air to heat up the air flow, and at the same time rotate the fan blades to blow out hot air.

Working principle of DC fan: The working principle of DC fan is based on the principle of electromagnetic induction, which realizes energy conversion through the interaction of electric field and magnetic field. Specifically, when direct current passes through the armature of an electric motor, a rotating magnetic field is generated within the armature. At the same time, the permanent magnets inside the motor will also generate a stable magnetic field. The interaction between these two magnetic fields causes the motor's armature to begin to rotate, driving the impeller to rotate and create airflow.

Working characteristics of DC motor: DC motor can change the direction of rotation by changing the direction of current in the armature. This is why DC fans can achieve forward and reverse rotation.
