Hair Dryer Motor 36V 1A 0.01Nm 320g Used in Hair Dryer Go-Gold

Essential Detials

Warranty: 3Years

Place of Origin: Guangdong, China

Brand Name: Go-Gold

Model Number: KG-5025DC36

Usage: Hair Dryer

Type: DC Motor

No-load Speed: 5000-25000RPM

Continous Current: 1A

Product Name: Hair Dryer Motor DC Motor

Certification: ISO

Rated Voltage: 36V

Keywords: Hair Dryer Motor

Noise: Low

Performance Specification

Lead Time

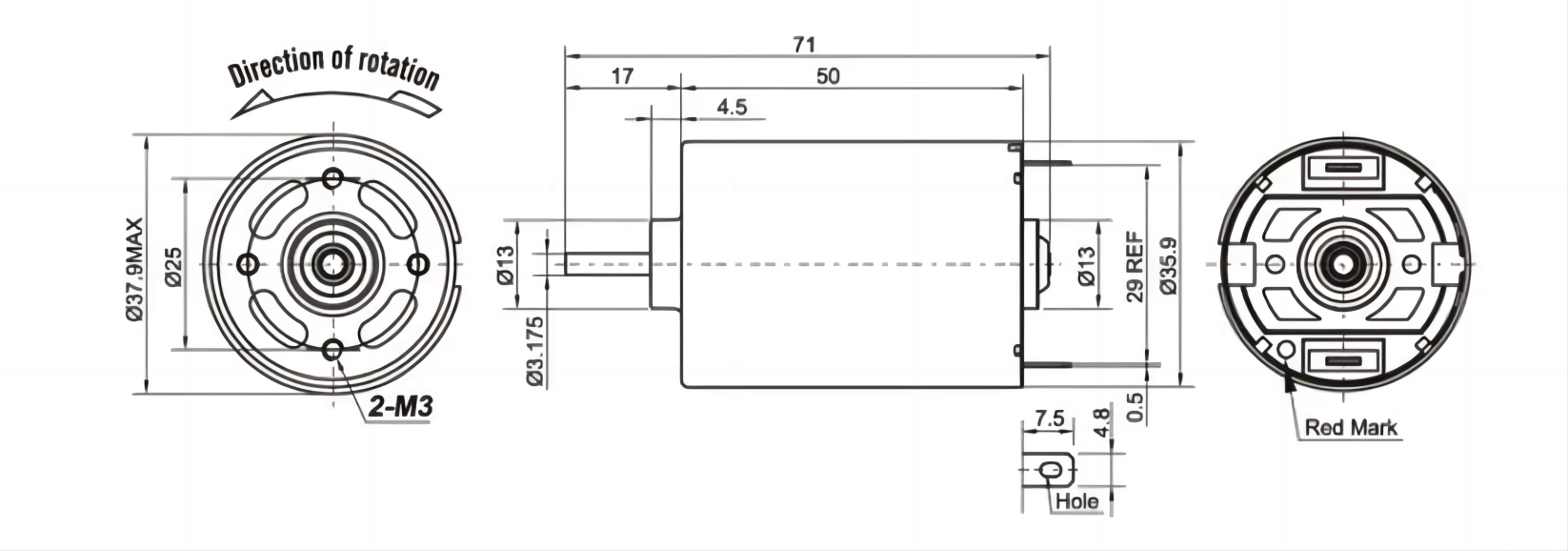

Outer Dimensions

Motor Application

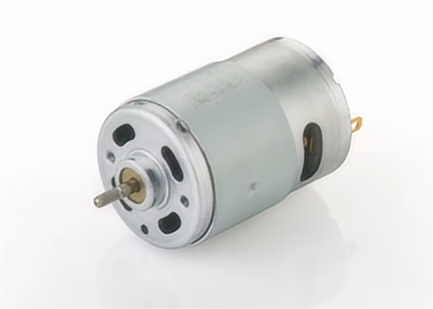

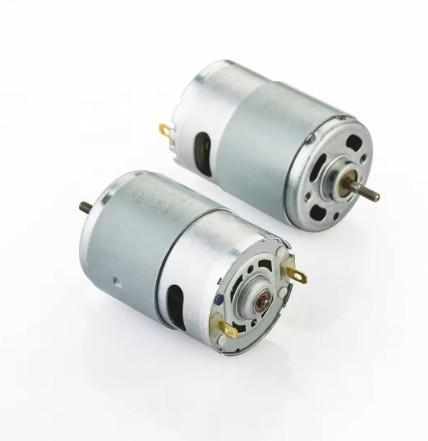

Motor Picture

The Difference between Brushed DC Motor and BLDC Motor Speed Control Methods

In fact, the control of both motors is voltage regulation, but because the brushless DC uses electronic commutation, it can only be realized with digital control, while the brushed DC commutates through carbon brushes, using thyristors, etc. Traditional analog circuits can be controlled and are relatively simple.

• The Brushed Motor speed adjustment process is to adjust the motor power supply voltage. The adjusted voltage and current are converted through the commutator and brush to change the strength of the magnetic field generated by the electrodes to achieve the purpose of changing the rotation speed. This process is called variable voltage speed regulation.

• The BLDC Motor speed adjustment process is to keep the voltage of the motor's power supply unchanged, change the control signal of the ESC, and then change the switching rate of the high-power MOS tube through the microprocessor to achieve the change in rotation speed. This process is called variable frequency speed regulation.

Characteristics of AC Motors and DC motors

1. DC characteristics:

(1) DC Motors have low operating power, good energy saving, low noise, multi-level speed regulation, precise control, and are expensive. DC motors are widely used in the industry because of their good adjustment performance and starting performance.

(2) However, for brushed DC motors, due to the mechanical contact mechanism of the brush commutator, the cost is high, accompanied by problems such as commutation sparks, electromagnetic interference, short life and reliability, which limits the its scope of application.

(3) Good speed regulation performance. The so-called "speed regulation performance" means that the motor can artificially change the speed of the motor as needed under certain load conditions. DC motors can achieve uniform and smooth smooth operation under heavy load conditions. Step speed regulation, and the speed regulation range is wide.

(4) The starting torque is large. Speed adjustment can be achieved evenly and economically. Therefore, any machinery that starts under heavy load or requires uniform speed adjustment.

2. Communication characteristics:
(1) AC Motors have high power and noise, but are relatively low-priced.

(2) AC synchronous motor has good operating performance, but its starting performance is poor.

(3) AC induction motor has the characteristics of simple structure and reliable operation, but its adjustment performance is poor.

(4) AC motors have high working efficiency, no smoke, odor, no environmental pollution, and low noise. Due to its series of advantages, it is widely used in industrial and agricultural production, transportation, national defense, commercial and household appliances, and medical care. It is widely used in electrical equipment and other aspects.
