Medical Equipment Motor 12V 3W 0.2A 0.75Kg.cm for Beauty Equioment

Essential Detials

Warranty: 3Years

Place of Origin: Guangdong, China

Brand Name: Go-Gold

Model Number: KG-4632GM12

Usage: Beauty Equipment

Type: Gear Motor

Rated Torque: 0.75Kg.cm

Rated Speed: 50RPM

Rated Current: 0.2A

Product Name: Beauty Equipment Motor Gear Motor

Certification: ISO

Rated Voltage: 24V

Keywords: Beauty Equipment Motor

Noise: Low

Performance specification

Lead Time

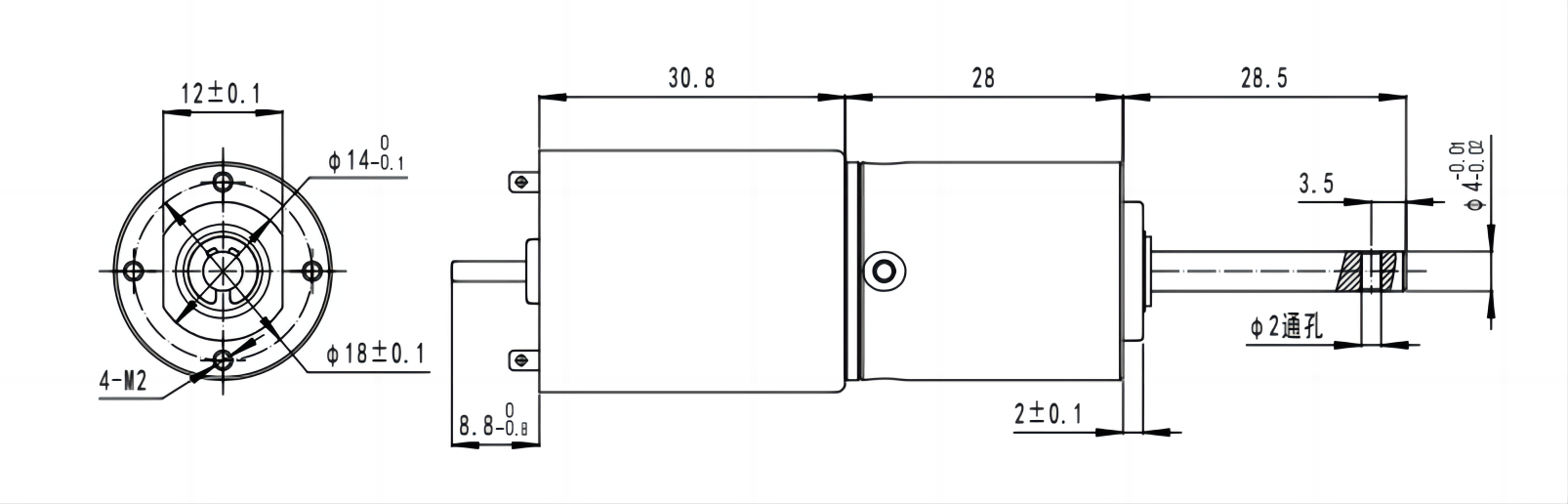

Dimensions

Motor Application

Motor Picture

Gear Motor refers to the integration of reducer and motor, also known as gear reduction motor or gear motor. It is basically supplied in complete sets after being assembled by the reducer manufacturer.

The Working Principle of Gear Motor

Its working principle is to transfer the power of the motor to the motor through the gear (or worm gear) reducer, thereby greatly reducing the speed and thereby increasing the output torque of the gearbox reduction motor to meet the needs of mechanical equipment. This kind of power transmission equipment has a core that cannot be ignored - the "power reduction" function, which uses various levels of gear (or worm gear) transmission to achieve the purpose of deceleration. The reducer is composed of various levels of gear pairs.

The most commonly used gear motors are: coaxial helical gearbox reduction motor; parallel axis - helical gearbox reduction motor; bevel gear - helical gearbox reduction motor; bevel gear worm gearbox reduction motor.

The Gear Motor Mainly has the Following Three Functions

1. Deceleration: The speed of the motor reaches the required speed through the deceleration gearbox, which is often referred to as the output speed;

2. Increase torque: Under the same power, the slower the output speed, the greater the torque, and vice versa.

3. Change the transmission direction: The gearbox reduction motor can transmit torque 90 degrees vertically.

The Function of the Gear Motor

• Implement speed conversion

By using different gears, the speed conversion between the motor output speed and the required movement speed can be achieved, thereby meeting the needs of different mechanical equipment.

• Provide torque

The gearbox can transmit the output torque of the motor to the working mechanism by reducing or increasing the torque, thereby overcoming the load problems caused by the resistance or friction of the working material.

• Enhance the machine's feed capacity

By transferring the energy of the motor to the gearbox, the feed capacity of the machine can be greatly improved, thus enabling more efficient industrial production

Shenzhen Go-Gold Motor Co., Ltd
