Medical Equipment Motor 24V 0.28A 6700RPM 5-200W Low Noise Go-Gold

Lead Time

Performance Specifications

Motor Details

Warranty: 3Years

Place of Origin: Guangdong, China

Brand Name: Go-Gold

Model Number: KG-4260DC24

Usage: Medical Equipment

Torque: 518.3g.cm

Speed(RPM): 6700RPM

Current(A): 0.28A

Product Name: Medical Equipment Motor BLDC Motor

Motor type: BLDC Motor

Certification: ISO

Rated Voltage: 24V/ Customized

Keywords: Medical Equipment Motor

Noise: Low

Dimension

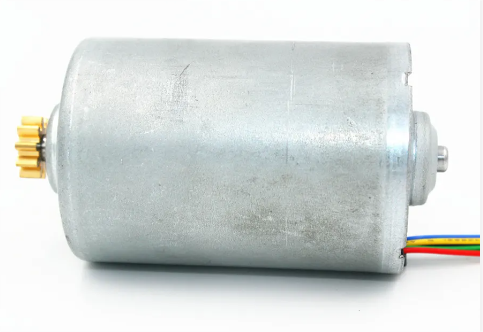

Motor Picture

BLDC Motors have the Following Characteristics

• The BLDC Motor has good external characteristics and can output large torque at low speed, allowing it to provide large starting torque;

• BLDC Motors have a wide speed range and can operate at full power at any speed;

• The BLDC motor has high efficiency and strong overload capability, which makes it have excellent performance in the drag system;

• The regenerative braking effect of the BLDC motor is good. Since its rotor is made of permanent magnet material, the motor can enter the generator state during braking;

• BLDC Motors are small in size and have high power density;

• The BLDC Motor has no mechanical commutator and adopts a fully enclosed structure, which can prevent dust from entering the inside of the motor and has high reliability;

• BLDC Motors are simpler to drive and control than asynchronous motors.

The Working Principle of BLDC Motor

The stator of a BLDC Motor is a coil winding armature, and the rotor is a permanent magnet. If only a fixed DC current is supplied to the motor, the motor can only produce a constant magnetic field, and the motor cannot rotate. The only way is to detect the position of the motor rotor in real time, and then supply corresponding currents to different parts of the motor according to the position of the rotor, so that The stator generates a rotating magnetic field that changes direction evenly, so that the motor can rotate along with the magnetic field.

How to Drive a BLDC Motor

The driving methods of brushless direct motors can be divided into multiple driving methods according to different categories, each with its own characteristics.

1. According to the drive waveform: square wave drive, this drive method is easy to implement and easy to control the motor without position sensor.

2. Sine drive: This drive method can improve the operating effect of the motor and make the output torque uniform, but the implementation process is relatively complicated.

Types of BLDC Motors

Brushless DC motors are divided into two categories: outer rotor type and inner rotor type.

1.External rotor method
A method of arranging a coil on the inside and a permanent magnet on the outside to rotate the outside permanent magnet. Stable rotation can be achieved.

2.Inner rotor method
A method of arranging a permanent magnet on the inside and a coil on the outside to rotate the permanent magnet on the inside. Like brushed motors, precise control can be achieved.

Shenzhen Go-Gold Motor Co., Ltd
