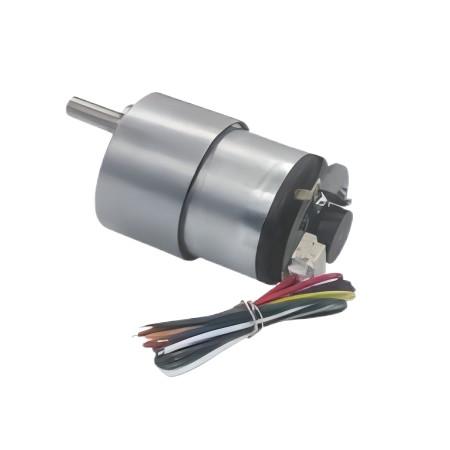

Smart Home Motor 6-12V 0.12-0.4A 3W Gear Motor For Electric Curtains

Lead Time

Product Description

Essential Details

Rated Voltage: 6-12V

Rated Speed: 7-1000RPM

Rated Power: 3W

Rated Current: 0.12-0.4A

Rated Torque: 0.1-30mN.m

Stall torque: 0.5-40mN.m

Application: Electric curtains

Size: 19-29MM

Warranty: 3 Years

Place of Origin: Guangdong, China

Direction of rotation: CW Or CCW

Key Word: Gear Motor

Model Number: KG-3752GM12

Drawing

Sample

Application

• Small Volume, Light Weight

• Compact StructureNo lron Loss, High Efficiency

• Long Motor LifeOvercurrent, Overvoltage ls Okay Within A Short TimeLow Temperature Rise

• Light EMl, Excellent Speed StabilityStable Performance

• No Cogging EffectLow Starting Voltage And Low Rotational Inerti

Motors can be constructed in several different physical configurations. In the conventional (also known as inrunner) configuration, the permanent magnets are part of the radially center core. In the outrunner (or external-rotor) configuration, the radial-relationship between the coils and magnets is reversed. The stator coils in the outrunner configuration form the center core of the motor, while the permanent magnets spin within an overhanging rotor which surrounds the core.

Gear motors function as torque multipliers and speed reducers, requiring less motor power to drive a given load. The gear housing design, the gearing type, gear lubrication, and the specific mode of integration all affect the gearmotor performance.

Increasing the reduction ratio producesincreased torque. but there are limits to thestrength of the material, so if the starting torquefor the geared motor exceeds the guaranteedstrength, avoid locking the output shaft. When using belts or cams to transmit the torquefrom the output shaft, problems can occur to thePV value of the gear shaft material drasticallyreducing the life so due care is requiredAvoid press fitting components to the outputshaft.

We have different speeds for direct drive motors and the motors to be used with ourstandard spur gears. The reason for this is that we want to offer you high speed in caseof direct use as it is often required, and a low noise level of spur gears because that is often arequirement in today's silent industrial environments.

Product Introduction

Gear reduction motor refers to the components of gear reduction box and motor (motor). This component can also be referred to as a gearbox motor or a reduction motor, which is usually supplied in complete sets after integrated assembly by a professional reduction machine manufacturer.

Gear motor is widely used, which is an indispensable power transmission equipment for automatic mechanical equipment.

Shenzhen Go-Gold Motor Co., Ltd
