Smart Home Motor 24V 20RPM 2.28A Gear Motor For Intelligent Lock

Lead time:

Product Description

Essential details

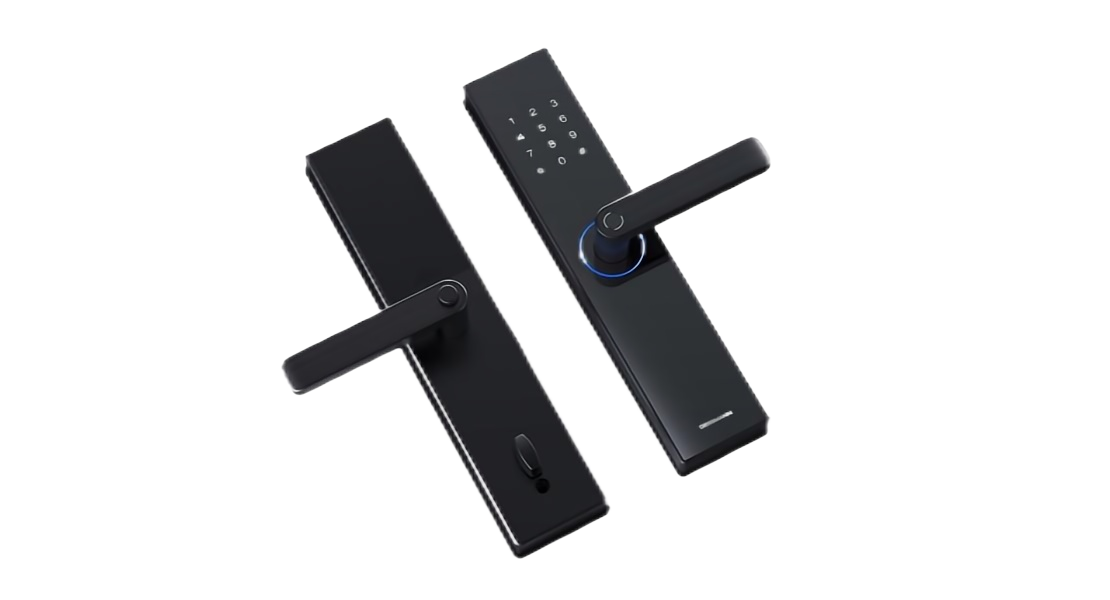

Application: Intelligent Lock

Rated Voltage: 24V

Rated Speed: 20RPM

Rated Power: 2.05W

Rated Current: 2.28A

Rated Torque: 980mN.m

Non-Load Speed: 22RPM

Non-Load Current: 0.5A

Key Word: Gear Motor

Model Number: KG-3065GM24

Warranty: 3 Years

Place of Origin: Guangdong, China

Drawing

Sample

Application

Gear motors function as torque multipliers and speed reducers, requiring less motor power to drive a given load. The gear housing design, the gearing type, gear lubrication, and the specific mode of integration all affect the gearmotor performance.

Product introduction

Gear reduction motor refers to the components of gear reduction box and motor (motor). This component can also be referred to as a gearbox motor or a reduction motor, which is usually supplied in complete sets after integrated assembly by a professional reduction machine manufacturer.

Gear motor is widely used, which is an indispensable power transmission equipment for automatic mechanical equipment.

Working principle

Gear motor is generally through the motor, internal combustion engine or other high-speed operation of the power through the gear reducer (or gearbox) input shaft of the pinion to drive the big gear to achieve a certain reduction in speed, and then the use of multistage structure, you can greatly reduce the speed to increase the output torque of the motor.

Its core "force deceleration" function is to use all levels of gear transmission to achieve the purpose of reducing speed, and the reducer is composed of gear pairs at all levels.

The characteristics of gear reducer

• gear reduction motor according to the national professional standard ZBJ19004 production technical requirements.
• space saving, reliable and durable, high overload capacity.
• low energy consumption, superior performance, reducer efficiency up to 95% or more.
• low vibration, low noise, high energy saving, the selection of high-quality steel material, steel cast iron box, gear surface through high-frequency heat treatment.
• after precision machining to ensure positioning accuracy, all these constitute the gear drive assembly of the gear motor configuration of various types of motors, forming a mechatronics, fully ensure the quality of product use characteristics.
• the product uses the series, modular design idea, has a wide range of adaptability, this series of products have a lot of motor combination installation, installation position and structure scheme, can be selected according to the actual needs of any speed and a variety of structural forms.

Shenzhen Go-Gold Motor Co., Ltd
