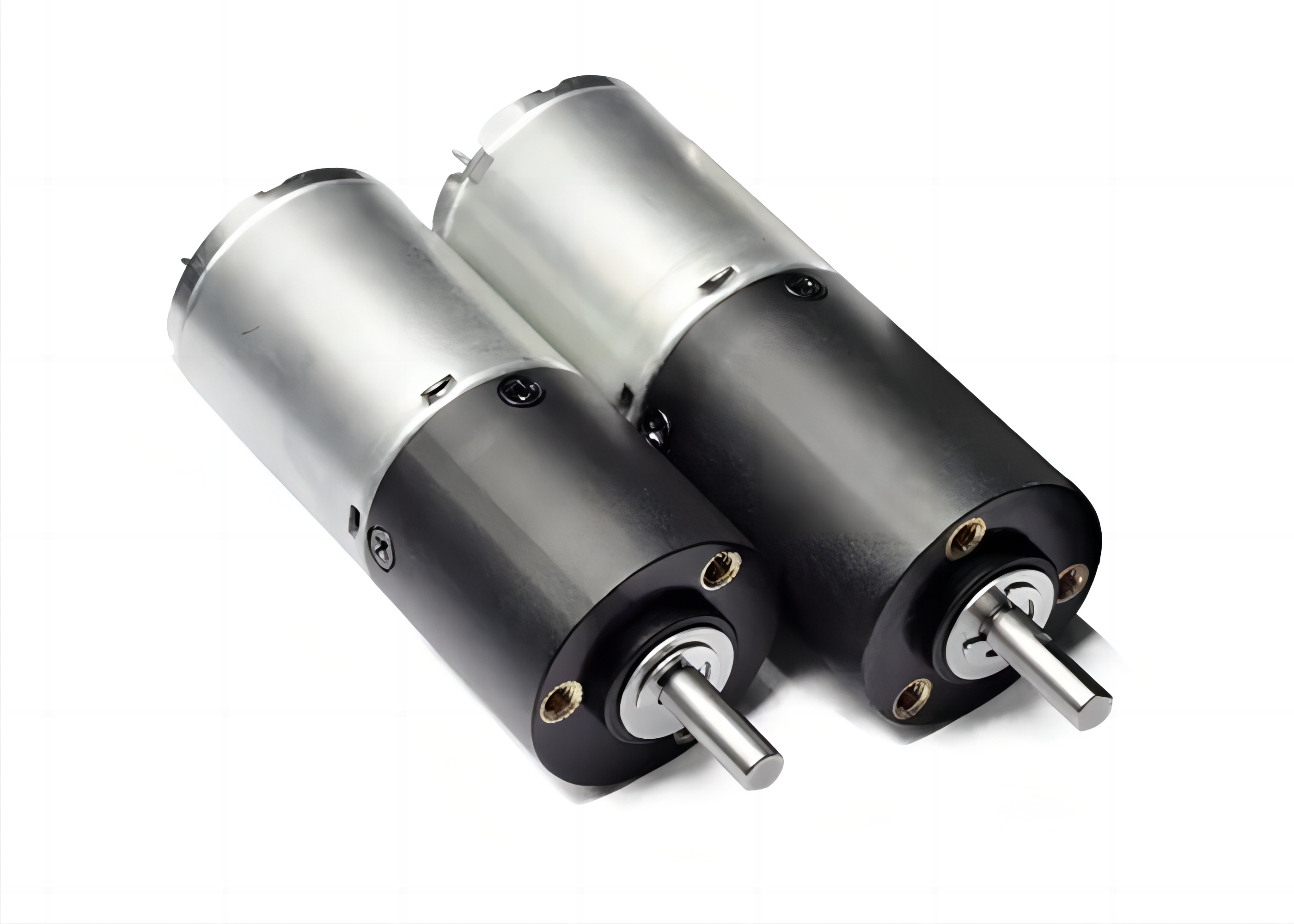

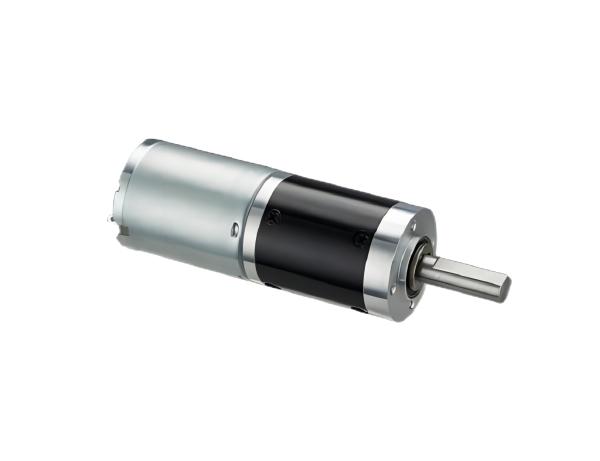

Electric Curtains Motor 24V 2W 1500RPM Gear Motor Go-Gold KG-6524GM24

Lead time:

Product Description

Essential details

Brand Name: Go-Gold

Model Number: KG-6524GM24

Feature: Electric Curtain

Rated Voltage: 24V

Current: 0.26A

Torque: 0.5Nm

Rated Speed: 1500RPM

Rated Power: 2W

Warranty: 3years

Place of Origin: Guangdong, China

Drawing

Sample

Increasing the reduction ratio producesincreased torque. but there are limits to thestrength of the material, so if the starting torquefor the geared motor exceeds the guaranteedstrength, avoid locking the output shaft. When using belts or cams to transmit the torquefrom the output shaft, problems can occur to thePV value of the gear shaft material drasticallyreducing the life so due care is requiredAvoid press fitting components to the outputshaft.

Avoid press fitting components to the outputshaft. When using pulse drive in the operating modebe careful to avoid applying unnecessary shockloads to the gears. Do not attempt to modify or disassemble the DCgeared motors. In particular, pinholing or cuttingthe shaft will result in degraded performanceand should be absolutely avoided.

In case of a DC-motor the speed curve from NO-LOAD speed to stall is rather linearand totally usable. The current also rises along a linear curve from NO-LOAD currentto stall current. More current means more heat in the winding. There is the currentvalue that develops the max temperature for the winding when occur continuously. Unlike AC-motors, are DC-Motors usable with a starting torque e.g. 4 timesnominal torque, though the motor should be used with such a load only intermittently.
