Quality And Reputation Always Come First.
3 Years
| Ask Lasest Price | |
| Brand Name : | GO-GOLD |
| Model Number : | KG-2427DC6 |
| Certification : | ISO |
| Price : | Negotiation |
| Payment Terms : | L/C, T/T, Paypal |
| Supply Ability : | 10000pcs-30days |
| Delivery Time : | 7days for samples |
Lead Time
| Quantity | 1-1000 | 1001-10000 | ≥10000 |
| Lead days | 15 | 30 | To be negotation |

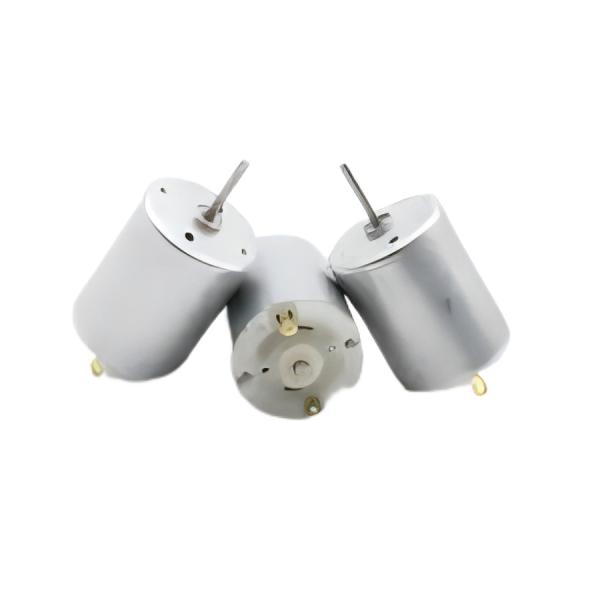

Product Description
| Continuous Current | 0.9-1.2A | Rated Voltage | 1.5-6V |
| Rated Speed | 7-470RPM | Rated Torque | 1.6-70kg.cm |
Essential Details
Type: DC Motor
Application: Medical Equipment, Home Appliance
Size: 42.2*59.5MM
Continuous Current: 0.9-1.2A
Place of Origin: Guangdong, China
Rated Torque: 1.6-70kg.cm
Efficiency: IE 2
Rated Voltage: 1.5-6V
Rated Speed: 7-470RPM
Warranty: 3 Years
Model Number: KG-2427DC6
Drawing
Sample
Application
A coil of wire with a current running through it generates an electromagnetic field aligned with the center of the coil. The direction and magnitude of the magnetic field produced by the coil can be changed with the direction and magnitude of the current flowing through it.
A simple DC motor has a stationary set of magnets in the stator and an armature with one or more windings of insulated wire wrapped around a soft iron core that concentrates the magnetic field. The windings usually have multiple turns around the core, and in large motors there can be several parallel current paths.
The ends of the wire winding are connected to a commutator. The commutator allows each armature coil to be energized in turn and connects the rotating coils with the external power supply through brushes. (Brushless DC motors have electronics that switch the DC current to each coil on and off and have no brushes.)
The total amount of current sent to the coil, the coil's size, and what it is wrapped around decide the strength of the electromagnetic field created.
The sequence of turning a particular coil on or off dictates what direction the effective electromagnetic fields are pointed. By turning on and off coils in sequence, a rotating magnetic field can be created.
These rotating magnetic fields interact with the magnetic fields of the magnets (permanent or electromagnets) in the stationary part of the motor (stator) to create a torque on the armature which causes it to rotate. In some DC motor designs, the stator fields use electromagnets to create their magnetic fields which allows greater control over the motor.
At high power levels, DC motors are almost always cooled using forced air.
Different number of stator and armature fields as well as how they are connected provide different inherent speed and torque regulation characteristics. The speed of a DC motor can be controlled by changing the voltage applied to the armature. Variable resistance in the armature circuit or field circuit allows speed control. Modern DC motors are often controlled by power electronics systems which adjust the voltage by "chopping" the DC current into on and off cycles which have an effective lower voltage.
|
|
