Quality And Reputation Always Come First.
3 Years
| Ask Lasest Price | |
| Brand Name : | Go-Gold |
| Model Number : | KG-BM1424HQF |
| Certification : | ISO |
| Price : | negotiation |
| Payment Terms : | L/C, T/T,paypal |
| Supply Ability : | 10000 pcs-30 days |
| Delivery Time : | 7days for samples |
Product description
Voltage(V): | 48V | Torque(mN.m): | 4mN.m |
Input power(W): | 1200W | Rated speed(RPM): | 2850RPM |
Lead time:
| Quantity(pieces) | 1 - 1000 | 1001 - 10000 | >10000 |
| Lead time (days) | 15 | 30 | To be negotiated |
Drawings
Permanent magnet motors are further divided into two categories: brush motors and brushless motors. Brushed and brushless motors. Brushed and brushless motors operate continuously with or without electric brushes, known as DC motors. They rely on the repulsion and attraction of the rotor magnetic field and the stator magnetic field. The current in the wire bundle must be converted at the appropriate machine, otherwise it will suck up and not rotate. A brush motor is automatically completed by the combination of a commutator and a brush, which are installed inside the motor.

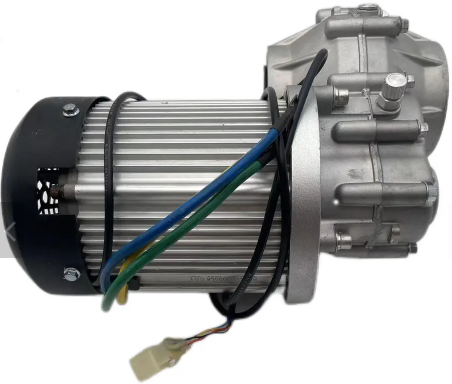

Brushless DC Motor

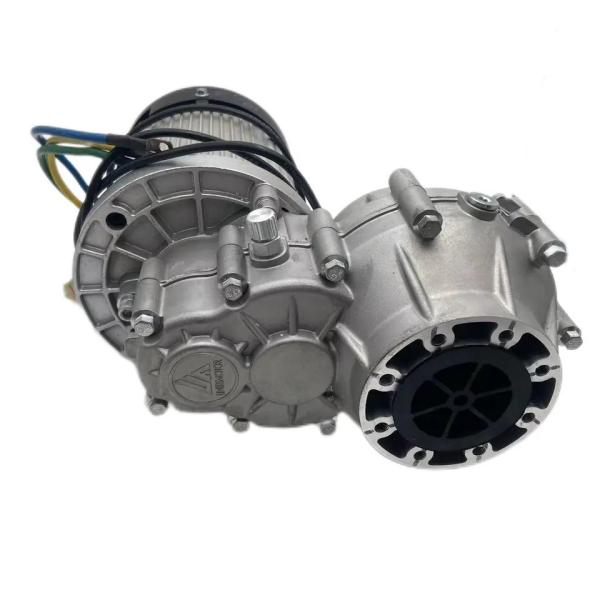

Medium and large tricycles is a kind of three wheeled transportation tool used to pull goods or people, powered by batteries and driven by motors. The Electric trike adopts tubular large capacity, left and right lining, deep discharge and traction batteries, which can meet the requirements of continuous discharge for a long time. The battery has been used for two years without reducing its content.
Brushless motors provide rotor position for brushless controllers. Commonly used brushless motors have 8 leads, of which three are thick yellow, thick green, and thick blue, which are winding leads, and the remaining 5 thin wires are rotor position sensor leads. Fine red is generally positive 5 volts, fine black is the negative terminal and signal common terminal of 5 volts, and fine yellow, fine green, and fine blue are the three rotor position signal leads. Brushless controllers rely on the signals they provide to change the direction of winding current.
There are two types of brushless motors for electric vehicles: 60
degrees and 120 degrees, which cannot be seen from the outside.
Brushless controllers can also be divided into 60 degrees and 120
degrees, and the motor and controller must be matched. There are 36
connection methods for the 8 wires between the brushless motor and
the brushless controller: only two are correct for 60 degrees, one
is forward rotation and the other is reverse rotation; There are 6
types of 120 degrees that are positive, 3 types of forward
rotation, and 3 types of reverse rotation.
|
|
