Quality And Reputation Always Come First.
3 Years
| Ask Lasest Price | |
| Brand Name : | Go-Gold |
| Model Number : | KG-2212 |
| Certification : | ISO |
| Price : | USD10-15/PCS |
| Payment Terms : | L/C, T/T,paypal |
| Supply Ability : | 10000pcs-30days |
| Delivery Time : | 7days |
Brushless Motor DC motor 3V output power 1KW rated speed 110000RPM bldc motor high speed for hair dryer
Brushless DC motors are motors without brushes and commutators that adjust stator currents to generate torque according to the position of permanent magnets in the rotor. Although it is called a "DC" motor, it is actually a permanent magnet synchronous motor (PMSM) that uses three-phase electricity. It is called "brushless DC motor" because it can replace brushed DC motors in many applications.
Essential details
Warranty:3years
Place of Origin:Guangdong, China
Brand Name:GO-GOLD
Model Number:KG-2212
Usage:High speed hair dryer
Type:Brushless Motor
Torque:Customised
Construction:Permanent Magnet
Commutation:Brushless
Protect Feature:Totally Enclosed
Speed(RPM):110000RPM
Continuous Current(A):0.75A
Efficiency:Other
Product Name:KG-2212
Packaging & delivery
Port: SHENZHEN

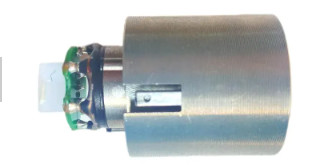

Picture Example:
Outer dimensions
Performance specifications
Voltage(V) | 3V | Load current(A) | 0.75A |
Input power(W) | 1KW | Rated speed(RPM) | 110000RPM |
Maintenance of DC Brushless Motors
- Before disassembly, use compressed air to blow off the dust on the surface of the motor and wipe it clean.
- Select the working location for motor disassembly and clean the
on-site environment.
- Familiar with the structural characteristics and maintenance
technical requirements of the motor.
- Prepare the necessary tools (including special tools) and
equipment for disassembly.
- In order to further understand the defects in the operation of
the motor, an inspection test can be conducted before disassembly
if conditions permit. To this end, the motor will be tested with a
load, and the temperature, sound, vibration, and other conditions
of each part of the motor will be checked in detail. The voltage,
current, speed, etc. will be tested, and then the load will be
disconnected. A separate no-load inspection test will be conducted
to measure the no-load current and no-load loss, and records will
be kept.
- Cut off the power supply, remove the external wiring of the
motor, and keep records.
- Select a suitable voltage megohmmeter to test the insulation resistance of the motor. In order to compare the insulation resistance values measured during the last maintenance to determine the trend of insulation change and insulation status of the motor, the insulation resistance values measured at different temperatures should be converted to the same temperature, usually converted to 75 ℃.
- Test the absorption ratio K. When the absorption ratio is greater
than 1.33, it indicates that the motor insulation has not been
affected by moisture or the degree of moisture is not severe. In
order to compare with previous data, it is also necessary to
convert the absorption ratio measured at any temperature to the
same temperature.
|
