| Voltage(V): | 110-230V | Frequency(Hz): | 50Hz |
| No load current(A): | 1.2A MAX | No load speed(RPM): | 26000RPM |
| Input power(W): | 350-500W | Voltage withstand test: | AC 1500V/0.5mA/Sec |

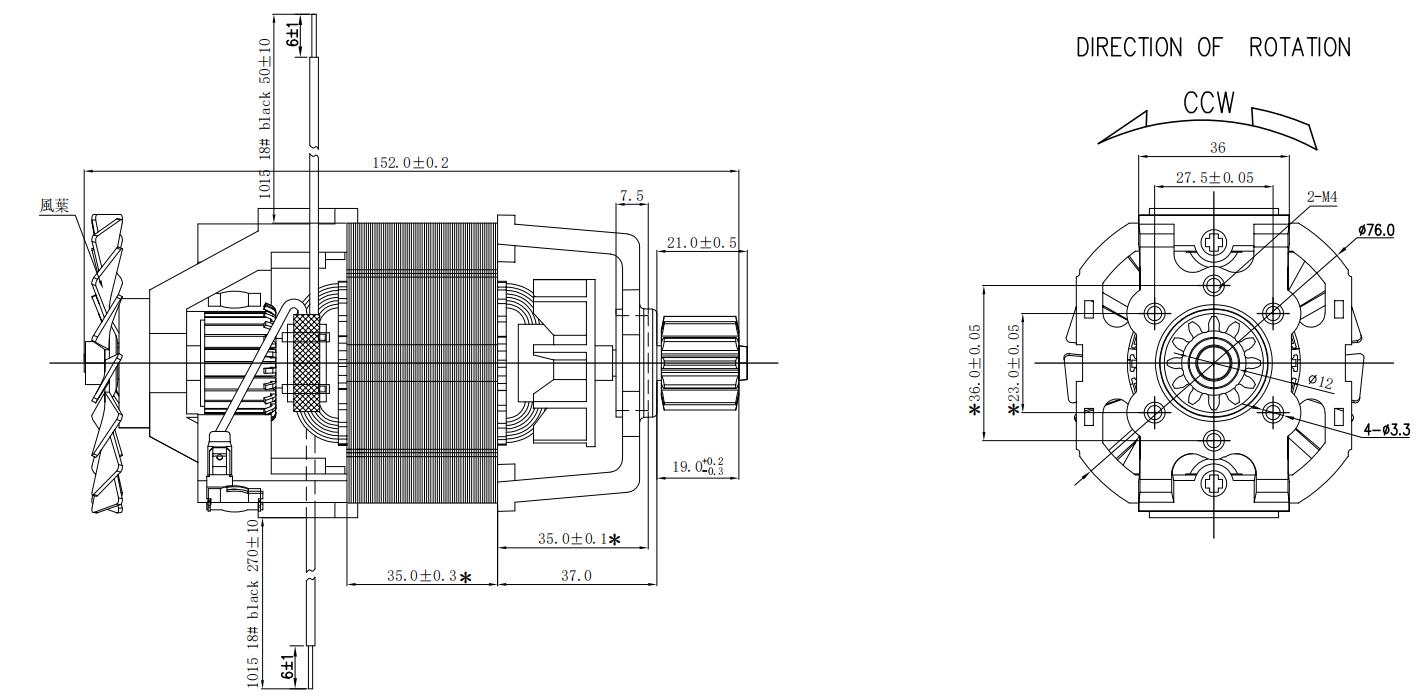

Outer dimensions
A universal motor is a special type of motor which is designed to run on either DC or single phase AC supply. These motors are generally series wound (armature and field winding are in series), and That is why, universal motors generally comes built into the device they are meant to drive. Most of the universal motors are designed to operate at higher speeds, exceeding 3500 RPM. They run at lower speed on AC supply than they run on DC supply of same voltage, due to the reactance voltage drop which is present in AC and not in DC.
There are two basic types of universal motor :
(i)compensated type and (ii) uncompensated type.
Construction of Universal motor
Construction of a universal motor is very similar to the
construction of a DC machine. It consists of a stator on which
field poles are mounted. Field coils are wound on the field poles.
However, the whole magnetic path (stator field circuit and also
armature) is laminated. Lamination is necessary to minimize the
eddy currents which induce while operating on AC.
The rotary armature is of wound type having straight or skewed slots and commutator with brushes resting on it. The commutation on AC is poorer than that for DC. because of the current induced in the armature coils. For that reason brushes used are having high resistance. Universal Motor - construction, working and characteristics.
A universal motor works on either DC or single phase AC supply. When the universal motor is fedwith a DC supply, it works as a DC series motor. (see working of a DC series motor here). Whencurrent flows in the field winding, it produces an electromagnetic field. The same current also flowsfrom the armature conductors. When a current carrying conductor is placed in an electromagneticfield, it experiences a mechanical force. Due to this mechanical force, or torque, the rotor starts torotate. The direction of this force is given by Fleming's left hand rule.
When fed with AC supply, it still produces unidirectional torque.
Because, armature winding andfield winding are connected in series,
they are in same phase. Hence, as polarity of AC
changesperiodically, the direction of current in armature and field
winding reverses at the same time.Thus, direction of magnetic field
and the direction of armature current reverses in such a way that
thedirection of force experienced by armature conductors remains
same. Thus, regardless of AC or DCsupply, universal motor works on
the same principle that DC series motor works.
|
|
