Quality And Reputation Always Come First.
3 Years
| Ask Lasest Price | |
| Brand Name : | Go-Gold |
| Model Number : | KG-4220 |
| Certification : | ISO |
| Price : | negotiation |
| Payment Terms : | L/C, T/T,paypal |
| Supply Ability : | 10000 pcs-30 days |
| Delivery Time : | 7days for samples |
Overview
Essential details
Warranty:3years
Place of Origin:Guangdong, China
Brand Name:Go-Gold
Model Number:KG-4220
Usage:Home Appliance
Type:Dc motor
Torque:Customised
Construction:Series Wound
Commutation:Brush
Protect Feature:Waterproof
Speed(RPM):1600-4000RPM
Continuous Current(A):0.9-2.5A
Efficiency:IE 3
Packaging & delivery
Port:SHENZHEN
Lead time:
Quantity(pieces) | 1 - 1000 | 1001 - 10000 | >10000 |
Lead time (days) | 15 | 30 | To be negotiated |

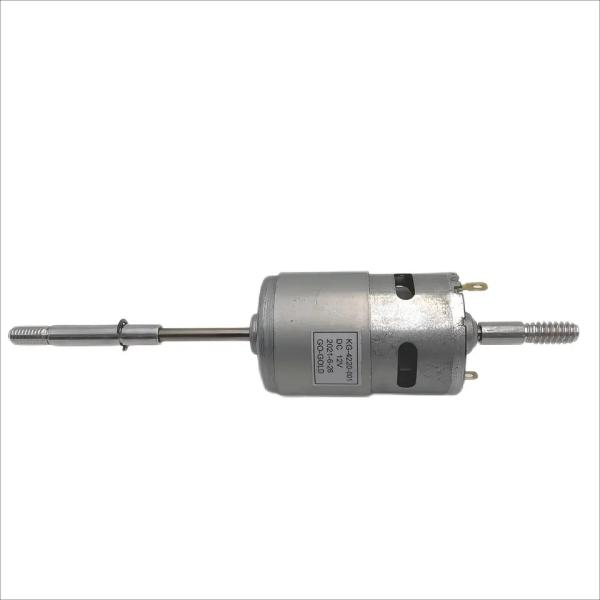

Product Description
Voltage(V): | 12-45V | Current(A): | 0.9-2.5A |
Input power(W): | 8-50W | Rated speed(RPM): | 1600-4000RPM |
Outer dimensions
A brush motor is a rotating motor that contains a brush device to convert electrical energy into mechanical energy (electric motor) or mechanical energy into electrical energy (generator). Brushed motors are the foundation of all motors, with characteristics such as fast start, timely braking, smooth speed regulation over a large range, and relatively simple control circuits.
Name: Brushed Motor
Definition: The foundation of all motors
Nature: Scientific applicability, universal use
Advantages: Cheap, simple layout, and convenient
Operational principle
When the motor is working, the coil and commutator rotate, while
the magnetic steel and carbon brush do not rotate. The alternating
changes in the current direction of the coil are completed by the
commutator and brush that rotate with the motor.
In the electric vehicle industry, brush motors are divided into high-speed brush motors and low-speed brush motors. There are many differences between a brush motor and a brushless motor. From the name, it can be seen that a brush motor has carbon brushes, while a brushless motor does not have carbon brushes.
A brush motor consists of two main parts: a stator and a rotor.
The stator has magnetic poles (winding or permanent magnet), and the rotor has windings. After being energized, a magnetic field (pole) is also formed on the rotor. There is an angle between the magnetic poles of the stator and rotor, which causes the motor to rotate under the mutual attraction of the stator and rotor magnetic fields (N and S poles). By changing the position of the electric brush, the direction of the magnetic pole angle between the stator and rotor can be changed (assuming that the magnetic pole of the stator is the starting edge of the angle, the magnetic pole of the rotor is the other side, and the direction from the magnetic pole of the rotor to the magnetic pole of the stator is the direction of the motor's rotation), thereby changing the direction of the motor's rotation.
