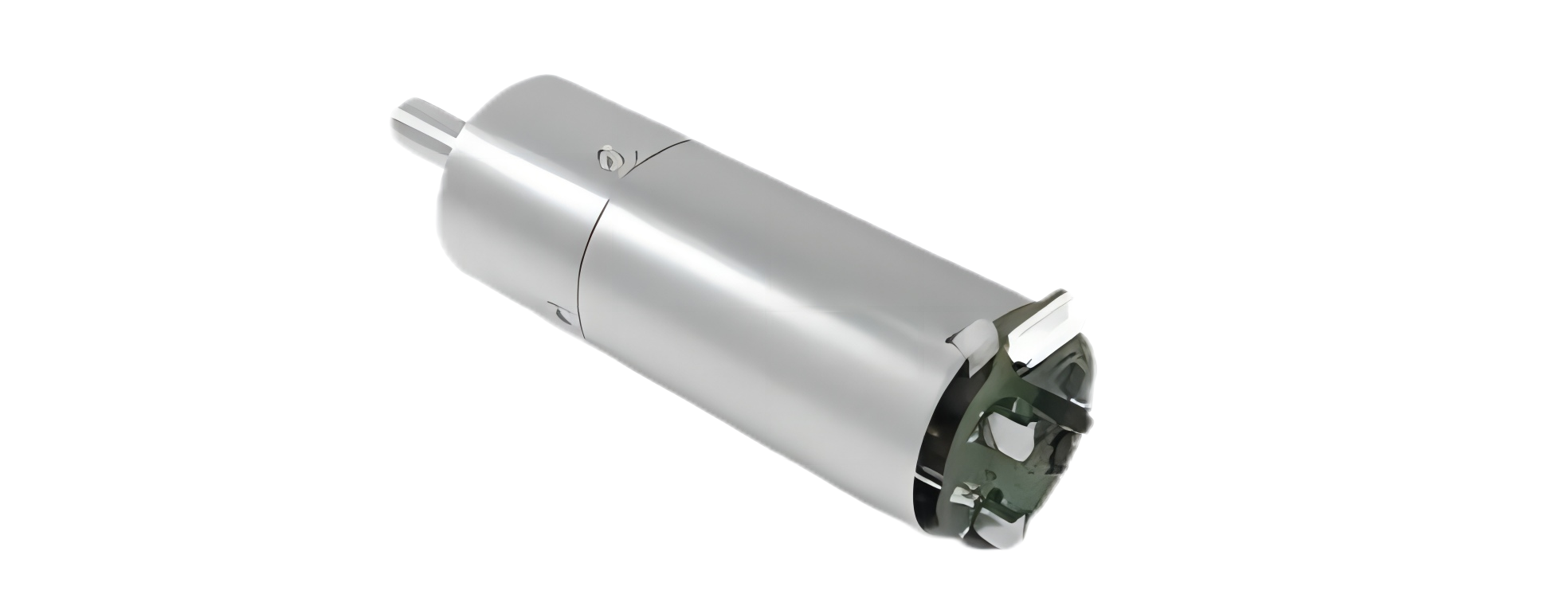

Smart Home Motor 3-24V 1.2-9.6W Gear Motor Used For Smart Trash Can

Essential Details

Key Word: Gear Motor

Place of Origin: Guangdong, China

Rated Speed: 26-30RPM

Rated Power: 1.2-9.6W

Rated Current: 400mA

Rated Torque: 40-120kgf.cm

Application: Smart Trash Can

Rated Voltage: 3-24V

Model Number: KG-2884GM24

Input Speed: <=15000RPM

Warranty: 3 Years

Efficiency: IE 2

Output Power: 1.2-9.6W

Lead Time

Product Description

Drawing

Sample

Application

Types And Advantages Of Different Gear Motors

Spur gear motor: The design concept of spur gear reducer is to reduce the speed of the transmission device through the transmission ratio generated by the meshing of the gears with different numbers of teeth. So each stage of the gear is the force point, the transmission speed from the motor shaft began to drop step by step, torque step by step increase. This is the original transmission design.

Planetary reducer motor: planetary gear box is mainly composed of planetary gear, sun wheel and outer gear ring. And by controlling the number of teeth of solar energy and the number of teeth of planetary gear to achieve different deceleration ratio design. For planetary gearboxes, the first stage reduction ratio of standard planetary gearboxes is proposed to be less than 1:10.

The experimental results show that the efficiency of the gearbox is the highest when the gearbox reduction ratio is 1:4 or 1:5. Therefore, engineers can achieve higher deceleration ratio requirements by designing 2-stage and 3-stage deceleration structures. But this means that the length of the gearbox will increase compared to the low-speed ratio gearbox.

Worm gear reducer motor: Worm gear motor is a type of gear motor consisting of two main components: worm gear and worm. A worm wheel is a cylindrical gear with helical teeth similar to a screw, while a worm is a cylindrical shaft with spiral threads that meshes with the worm wheel. This unique design enables worm gear motors to deliver high torque and lower speed.

Application Of Gear Motor

Gear motors are often used in enclosed Spaces, small sizes, high torque, low speed applications. The gear motor design is more compact, less noisy and more energy efficient.

• Automation industry: valves, access control, vending machines, ovens, etc.
• Smart home: rails, TV stands, curtains, automation, coffee makers
• Robot: lawn mower, AGV system, robot arm, lifting function
• Automotive industry: pulleys, tailgate push rods, rearview mirror adjustment

Shenzhen Go-Gold Motor Co., Ltd
