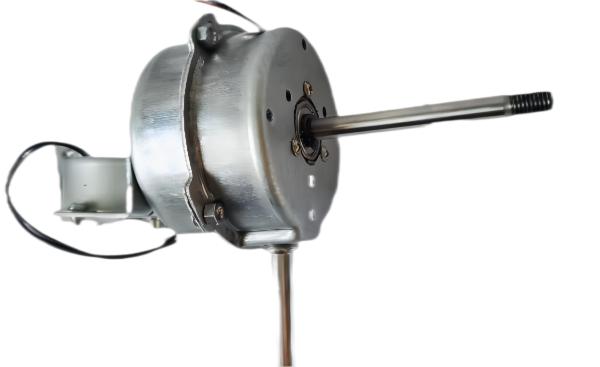

Electric Fan Motors 1A 24V 24W 2600RPM Stepless Control

BLDC FAN Customized Drip-Proof Permanent Magnet KG-8251DC24

Drawings

Performance Specifications

Essential Details

Efficiency: IE 3

Commutation: Brushless

Protect Feature: Drip-proof

Speed: 1000-10000RPM

Construction: Permanent Magnet

Noise: Low Noise Level

Keywords: BLDC Fan Motor

Warranty: 3 Years

Place of Origin: Guangdong, China

Brand Name: GO-GOLD

Model Number: KG-8251DC24

Usage: Electric Fan

Type: Brushless Motor

Motor Sample

How brushless motor fans work?

• Principle

A brushless motor is a device that converts electrical energy into mechanical energy. Its working principle is different from traditional brushed motors. Traditional brush motors require brushes to provide power to the rotor, while brushless motors use internal electronic components to control the direction and size of the current, so that electrical energy is converted into mechanical energy. The brushless motor has multiple permanent magnets on the rotor and does not need brushes to control the direction and magnitude of the current, so it has higher efficiency and longer life.

• Work Process

The working process of the brushless motor fan is as follows: the motor controller sends the current control signal through the power switch and FET tube, and then controls the electrical energy conversion process in the motor. The electrical energy in the motor is converted to drive the motor to rotate, thereby driving the fan blades to rotate at a certain speed to generate wind. The rotation speed and output power of the brushless motor can be adjusted and controlled by the controller to achieve optimal results.

• Advantage

Brushless motor fans have the following advantages compared to traditional brushed motor fans:

1. Higher efficiency, brushless motors do not require brushes on the rotor, reducing mechanical friction and energy consumption.

2. Quieter, the rotor of the brushless motor runs more smoothly and reduces noise.

3. Longer service life, the brushless motor has better durability and can be used for a longer time.

4. With greater power output, brushless motors can withstand greater loads.

Brushless motor fans use internal electronic components to control current and convert electrical energy into mechanical energy. They have higher efficiency, longer service life, quieter operation and greater power output. In modern life, brushless motor fans have become one of the indispensable electrical appliances in people's lives.
