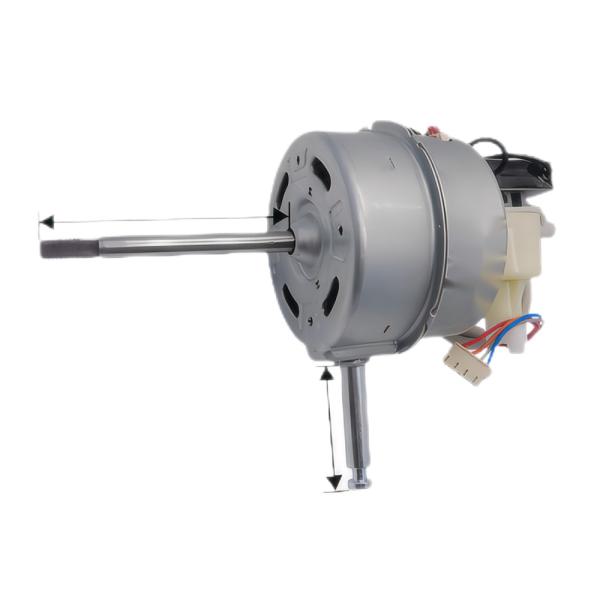

Electric Fan Motors 24W 24V 2600RPM Tepless Control

BLDC Permanent Magnet KG-8251DC24 China

Drawings

Performance Specifications

Essential Details

Efficiency: IE 3

Commutation: Brushless

Protect Feature: Drip-proof

Speed: 1000-10000RPM

Construction: Permanent Magnet

Noise: Low Noise Level

Keywords: BLDC Fan Motor

Warranty: 3 Years

Place of Origin: Guangdong, China

Brand Name: GO-GOLD

Model Number: KG-8251DC24

Usage: Electric Fan

Type: Brushless Motor

Motor Sample

Working Principle of Brushless Motor Fan

1. Principle of Brushless Motor

Brushless motor is a device that converts electrical energy into mechanical energy, and its working principle is different from traditional brushed motors. Traditional brushed motors require brushes to provide power to the rotor, while brushless motors control the direction and magnitude of current through internal electronic components, converting electrical energy into mechanical energy. The rotor of a brushless motor has multiple permanent magnets, which do not require the use of brushes to control the direction and magnitude of current, resulting in higher efficiency and longer lifespan.

2. Working Process

The working process of a brushless motor fan is as follows: the motor controller sends out current control signals through the power switch and FET tube, thereby controlling the electrical energy conversion process in the motor. The electrical energy in the motor is converted to drive the motor to rotate, thereby driving the fan blades to rotate at a certain speed and generating wind power. The rotational speed and output power of a brushless motor can be adjusted and controlled through a controller to achieve optimal results.

3. Advantages

Compared to traditional brushed motor fans, brushless motor fans have the following advantages:

① Higher efficiency, brushless motor rotor does not require brushes, reducing mechanical friction and energy consumption.

② Quieter, the rotor of the brushless motor runs more smoothly, reducing noise.

③ Longer service life, brushless motors have better durability and can be used for longer periods of time.

④ With a larger power output, brushless motors can withstand larger loads.

4. Summary

Brushless motor fans control current through internal electronic components, converting electrical energy into mechanical energy, resulting in higher efficiency, longer lifespan, quieter operation, and greater power output. In modern life, brushless motor fans have become one of the indispensable electrical appliances in people's lives.
