Quality And Reputation Always Come First.
3 Years
| Ask Lasest Price | |
| Brand Name : | GO-GOLD |
| Model Number : | KG-6020M24 |
| Certification : | ISO |
| Price : | Negotiation |
| Payment Terms : | L/C, T/T, Paypal |
| Supply Ability : | 10000pcs-30days |
| Delivery Time : | 7days |
Lead Time
| Quantity | 1-1000 | 1001-10000 | ≥10000 |
| Lead days | 15 | 30 | To be negotation |
Product Description
| Rated Voltage | 36-240V | No load Speed | 1300-2900RPM |
| Frequency | 50/60HZ | Rated Current | Customized |
Essential Details

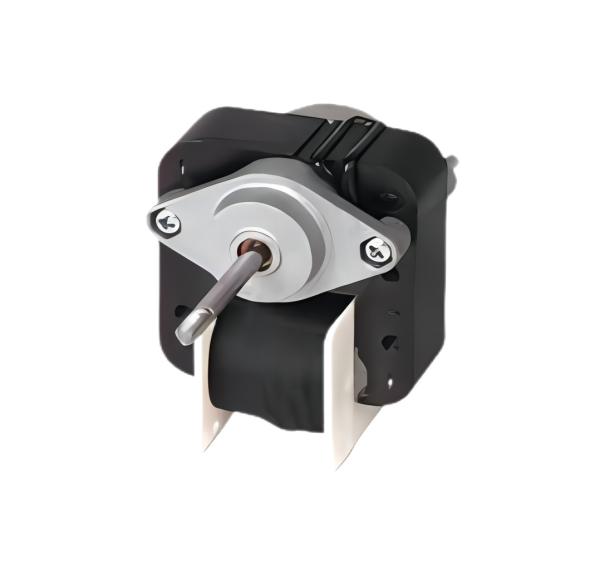

Key Word: Shaded Pole Motor
Place of Origin: Guangdong, China
No load Speed: 1300-2900RPM
No load Power: 5-50W
Application: Oven
Rated Voltage: 36-240V
Model Number: KG-6020M24
Frequency: 50/60HZ
Warranty: 3 Years
Efficiency: IE 2
Certification: CCC/CE/CUL/UL/ROHS
Rotating Direction: CW Rotating Direction or CCW
Sample
Application
The remarkable feature of the covered pole motor is that the structure is very simple, there is no centrifugal switch, the power loss of the covered pole motor is large, the motor power factor is low, and the starting torque is also low. They are designed to remain small in size with low power ratings. The speed of the motor is as precise as the frequency of the power supply applied to the motor.
A. The stator core of the salient pole covered pole motor is A square, rectangular or circular magnetic field frame, the magnetic pole is convex, and each magnetic pole has 1 or more short circuit copper rings that play an auxiliary role, that is, the cover pole winding. The central winding on the salient pole is used as the main winding.
B, the stator core of the hidden pole type covered pole motor is the same as that of the ordinary single-phase motor, the stator winding is distributed, the main winding is distributed in the stator slot, the covered pole winding is not short circuited copper ring, but the thicker enamelled wire is wound into the distributed winding (short circuit after series) embedded in the stator slot (about 1/3 of the total number of slots), which plays the role of the auxiliary group. The main winding and the shield winding are spaced at a certain Angle.When the main winding of the covered pole motor is energized, the covered pole winding will also generate induced current, so that the flux of the covered part of the stator magnetic pole and the uncovered part of the covered part will rotate in the direction of the covered part.
When the field coil of the covered pole motor is energized, the flux distribution of the covered pole of the covered pole motor moves in space, from the end cover part to the cover part, as if the rotating magnetic field, so that the cage structure rotor obtains the starting torque, and also determines the steering of the motor from the end cover part to the cover part.
|
|
